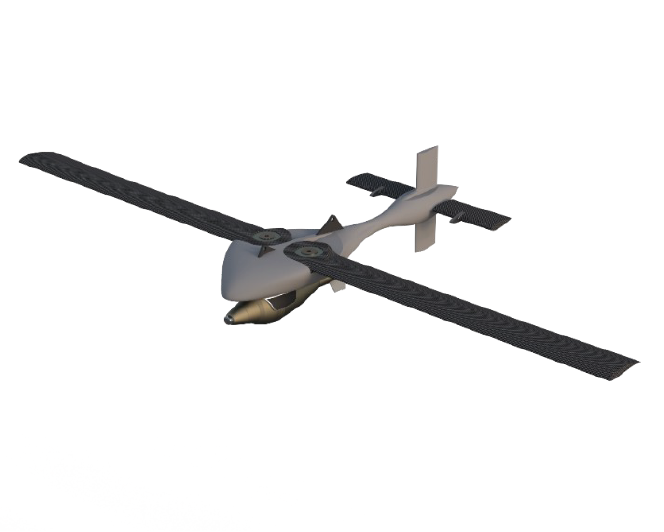

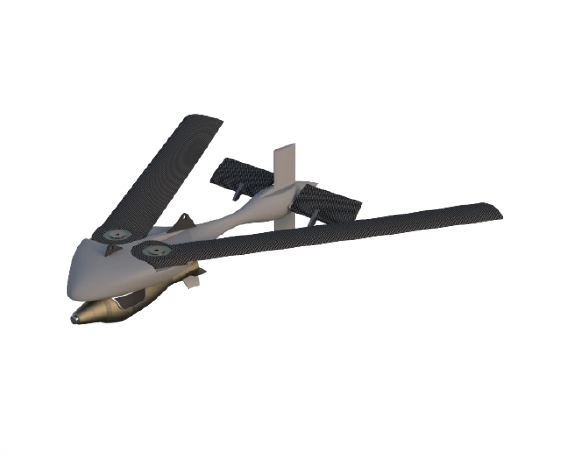

The Draganflyer-60 and Dragonflyer-81 is a series of compact foldable gliders, designed to carry a 60mm and 81mm mortar shell respectively. Deployed from a mother ship aircraft, the gliders are designed with a 5-to-1 glide ratio, enabling effective and efficient flight.

The Drangflyer receives target coordinates from a ground control station and autonomously calculates the shortest, most efficient flight path to the target based on prevailing weather conditions. The glider ensures precision strikes with minimal collateral damage, making it a valuable addition to modern aerial warfare.



TECHNICAL SPECIFICATIONS

DRAGONFLYER-60

Maximum drop-off weight: 4kg

Payload: 60mm mortal shell 1.2–1.6 kg

Cruise/Glide Speed: 162 km/h

Dive Speed: 215 km/h

Range: 1.9 km (when dropped from 500m altitude)

Range: 4.5 km (when dropped from 1000m altitude)

Range: 14.5 km (when dropped from 3000m altitude)

Wingspan: 1.1m

Width: 0.28m Folded

Height: 0.16m

Length: 0.51m Unfolded – 0.62m Folded

DRAGONFLYER-81

Maximum drop-off Weight: 5.5 kg

Payload: 81 mm mortal shell 3.5 – 4.0 kg

Cruise/Glide Speed: 195 km/h

Dive Speed: 260 km/h

Range: 2 km (when dropped from 500 m altitude)

Range: 4 km (when dropped from 1000 m altitude)

Range: 12 km (when dropped from 3000 m altitude)

Wingspan: 1.4m

Width: 0.36 m Folded

Height: 0.36 m

Length: 0.97 m
