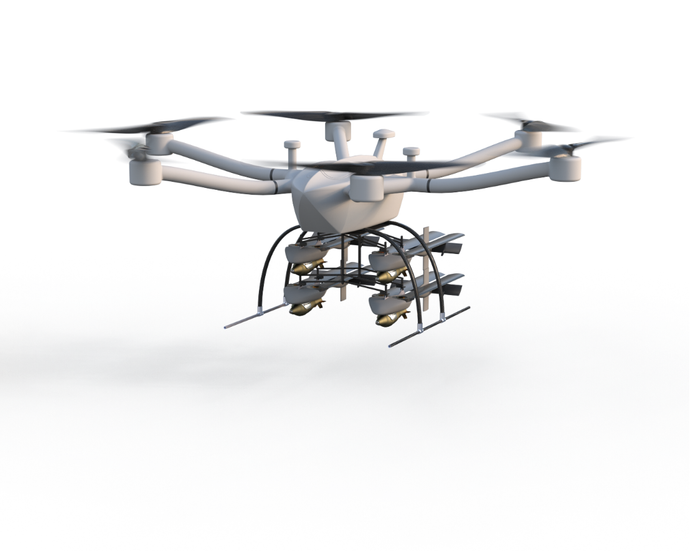

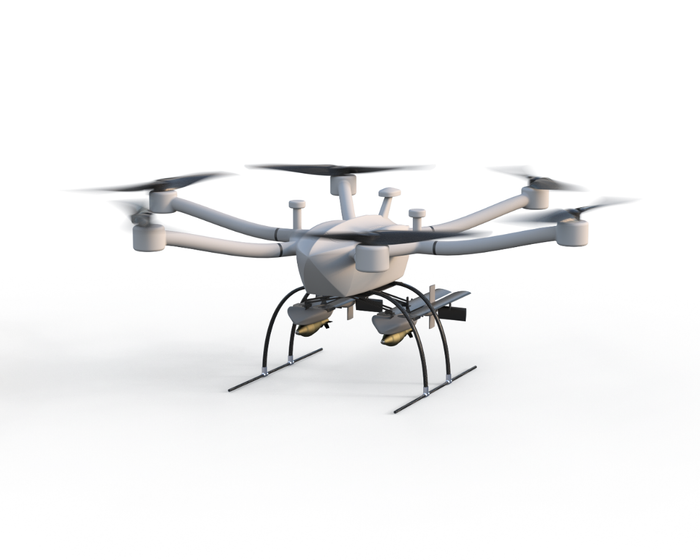

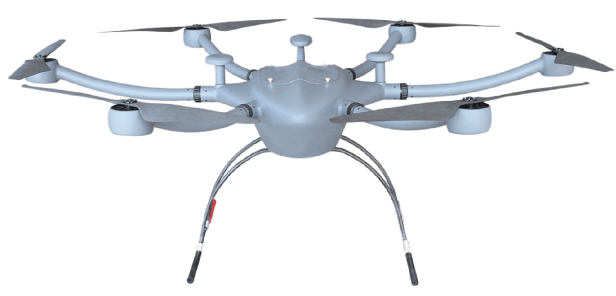

GOLIATH HEXACOPTER
)
)
)
)
)
)
TECHNICAL SPECIFICATIONS
• Static frame diameter: 1600mm
• Diameter including rotating parts: 2360mm • Height: 630mm
• Weight (w/o battery) : 7.7 kg
• Weight (with battery) : 18 kg
PERFORMANCE
• Max. take-off weight: 33kg
• Max. ascent speed: 5m/s
• Max. horizontal flight speed:13m/s
• Flight Time: 58 min for 5kg payload, 30 min for 15kg payload
OPTIONAL FEATURES
GPS anti-jamming system to ensure GPS continuity and enable operations beyond visual line of sight
GROUND CONTROL STATION
OPTIONAL PAYLOAD
A)
• ZT30 Optical Pod Four Sensors 4K 8MP
• 180X Hybrid Zoom / 30X Optical Zoom Gimbal Camera
• 640 × 512 High Resolution Thermal Imaging
• High Accuracy Laser Rangefinder 2K Wide Angle with AI Smart
• Tracking 3-Axis Stabilizer
B)
• ZR30 4K 8MP Ultra HD 180X Hybrid
• Hybrid 30X Optical Gimbal
• Camera with AI Smart Identify and Tracking 1 / 2.7’’ Sony
• Sensor HDR Starlight Night • Vision 3-Axis Stabilizer
C)
• ZR10 2K 4MP QHD 30
• Hybrid Zoom Gimbal Camera with 2560×1440 HDR Starlight
• Night Vision 3-Axis Stabilizer
