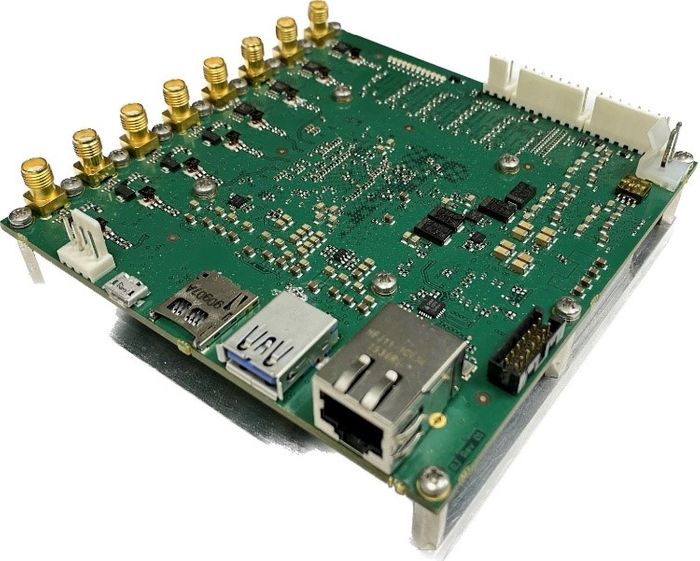

The RFSoC System-on-Module is designed for integration into deployed RF systems demanding small footprint, low power, and real-time processing. The board is a complete, ready-to-use system built around the Xilinx Zynq® UltraScale+™ RFSoC, and provides access to large FPGA gate densities, 8 RF-ADC, 8 RF-DAC channels, expandable I/Os port and DDR4 memory for variety of different programmable applications.

Features:

- 4x ADCs, 12-bit up to 4.096 GSPS

- 4x DACs, 14-bit up to 6.554 GSPS

- Quad-core Arm® Cortex®-A53 processing subsystem

- UltraScale+ programmable logic

- 1 Gigabit Ethernet port, , USB2/3

- MicroSD (Processor side)

- FPGA JTAG Header

- 1 USB/UART

- RS422 port



Clocks & Synchronization

- Ultra-low jitter programmable sampling clocks

- Phase coherent synchronous sampling across all converters



Memory

- 4GB DDR4 @ Processor Subsystem

- 512MB QSPI boot storage



 System

- 114 mm x 114 mm x 40mm footprint

- 7V to 15V input

- Temperature monitor

- Industrial temperature rated components (-40°C to +85°C)





Target apps

- Multi-Channel RF Instrumentation

- Signal Detection & Jamming

- Phased Array Radar

- 5G Massive MIMO

- Hybrid Beamforming
