Key Features & Capabilities

▶ One‑hand operation: Ergonomic, lightweight design (~1.5 kg) minimizes operator burden for rapid deployment.
▶ Near‑distance effectiveness: Designed for short‑range suppression of C2 and GNSS links, including swarm mitigation tactics.
▶ Selectable jamming modes: Block only C2, only GNSS, or both simultaneously depending on the threat and whether the drone is armed.
▶ Rapid mission readiness: Includes two batteries and charger for hot‑swap operation; holster and hard case options.
▶ Ruggedized: Operates from –32 °C to +55 °C and meets IP65 dust/water protection for harsh environments.
▶ Tactical outcomes: C2 jamming can induce Return‑to‑Home; simultaneous C2+GNSS jamming can force ground landing.
▶ Follow‑on capability: WILDCAT II adds UHF‑band jamming for expanded threat coverage.

Technical Specifications (Summary)

▶ Weight: Approximately 1.5 kg
▶ Continuous Operation Time (Max): 1.5 hours
▶ Jamming Frequency:

• GNSS: L‑Band (1,559–1,610 MHz)

• Command & Control: S‑Band (2,400–2,483.5 MHz) / C‑Band (5,725–5,850 MHz)

• UHF‑Band (902–928 MHz) — WILDCAT II

▶ EIRP (Typical): L‑Band (GNSS): 2 W; S‑Band: 6 W; C‑Band: 6 W; UHF: 1 W

▶ Environment: Operating temperature –32 °C ~ +55 °C; Dustproof/Waterproof: IP65
▶ Jamming Range: C2 Link: 900 m (note: distance between jammer and drone pilot referenced as 3 km); GNSS: 500 m (standard conditions)
▶ Beam Angle: Azimuth 25°, Elevation 30°

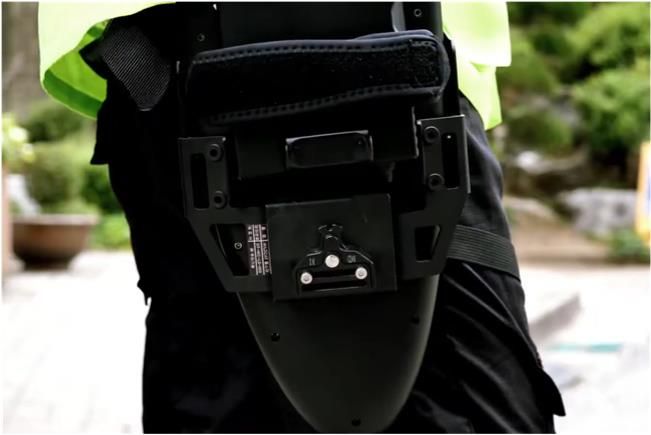

▶ Components: WILDCAT unit, 2 batteries, charger, hard case, holster (option)

Applications

▶ Tactical counter‑UAS for military, law enforcement, and security teams
▶ Rapid response to rogue or swarm drone incidents in urban, critical‑infrastructure, and event protection scenarios
▶ Short‑range denial of C2/GNSS links to force safe drone recovery behaviors (RTH / ground landing)
