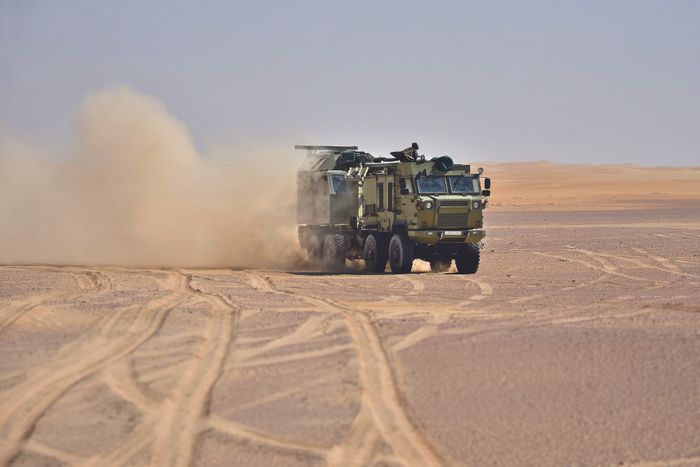

NORA B52

NORA B52

The latest technology in design and manufacture were applied in designing of the third generation of NORA, which resulted in multiple savings in time as well as in the increased accuracy. The weapon is modular, which provides for the delivery of a number of different options depending of the user’s choice.

The NORA-B52 155mm self-propelled gun-howitzer set includes:

» armament subsystems,

» modified off-road vehicle subsystem,

» hydraulic subsystem with belonging back-up subsystems,

» electrical power subsystem,

» weapon fire control system (FCS),

» fire protection subsystem,

» ventilation, air-conditioning and heating subsystem,

» subsystem of communication between crew members,

» APU



The NORA-B52 155mm self-propelled gun-howitzer meets the following mobility and passability requirements:

» maximum speed on a level asphalt road ≥90 km/h

» maximum speed on a level macadam road ≥40 km/h

» maximum off-road speed ≥15 km/h

» trench width ≥1600mm

» maximum gradient ≥50%

» maximum side slope ≥20%

» range of movement on a level road ≥500 km (asphalt or good macadam road)

» fording depth ≥1.0m

» vertical obstacle height ≥0.50m

» minimum turning radius ≤16.6m

» run-flat driving range to 50 km


The NORA-B52 155mm self-propelled gun-howitzer  have the following armament:

» primary armament: 155mm gun with a 52-caliber barrel, with automatic loader installed in a turret (partly armoured) on a modified chassis of an off-road vehicle ( 12 projectiles and 12 propellant charges in the automatic loader and 24 projectiles  and 24 propellant charges in the ammunition containers behind of cabin)

» secondary armament: - 12.7mm machine gun with a turret,

» smoke pot launchers (two groups with 82mm launchers each, installed in the front part of the vehicle cabin),

» training armament: coupled 20mm M55 gun.
